Reporting and interpretation
Technical interpretation and clear communication
InSAR data requires expert interpretation to translate displacement measurements into engineering insight. Our reporting service bridges the gap between remote sensing outputs and the decisions you need to make, presenting findings in clear, actionable terms supported by rigorous technical analysis.
Beyond the data
Displacement maps and time-series plots are starting points, not conclusions.
Understanding what the measurements mean requires knowledge of geology, ground behaviour, structural response, and the specific context of each site.
A 2 mm/year movement rate might be negligible for one asset and critical for another.
Seasonal variations might indicate normal thermal cycling or problematic moisture-driven shrink-swell.
Our reports interpret the data within its proper engineering context, distinguishing between benign observations and genuine concerns.
Report contents
A typical technical report includes an executive summary presenting key findings and recommendations in accessible terms.
The methodology explains the data sources, processing approach, and quality control measures applied.
Results are presented through annotated maps, time-series plots, and statistical summaries, with detailed discussion of significant observations.
Interpretation places the findings in geological and engineering context, explaining the likely causes of observed movements and their implications.
Recommendations identify any further investigation, monitoring, or intervention that may be warranted.
Appendices provide supporting data, processing parameters, and technical details for specialist readers.

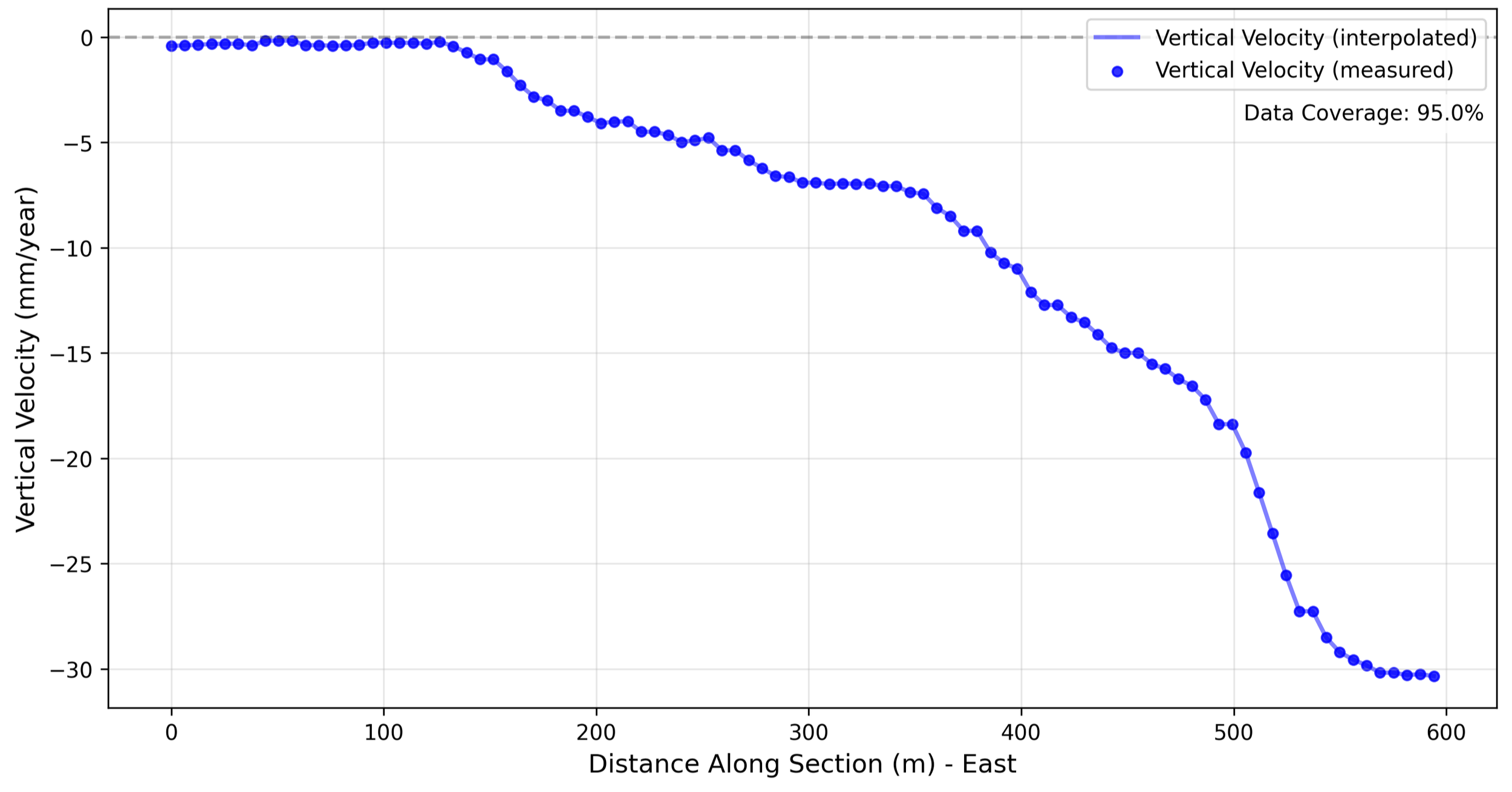

Custom deliverables include velocity cross-sections, which allow you to view the spatial patterns of movement across your site.
Supporting your decisions
Our reports are designed to support decisions, not just document observations.
Where findings indicate cause for concern, we provide clear recommendations for response - whether that means enhanced monitoring, further investigation, or referral to specialist contractors.
Where findings indicate stability, we provide the evidence and reasoning that supports that conclusion.
We are happy to discuss findings with your technical team, answer questions about the analysis, and support you in communicating results to stakeholders, regulators, or other parties.
Our reporting approach
Every report begins with your questions. What decisions will this analysis inform? What do you need to understand about this site or asset?
We structure our analysis and presentation around these objectives, ensuring that the report delivers answers rather than just data.
Technical rigour underpins everything we produce - our interpretations are based on sound geotechnical principles and clearly reasoned from the evidence - but we prioritise clarity and utility in how we communicate findings.
Tailored outputs
Different audiences need different outputs.
A board-level briefing requires different content than a geotechnical design report.
A regulatory submission has different format requirements than an internal asset review.
We tailor our reporting to match your audience and purpose - from concise summary notes to comprehensive technical documents, and from presentation slides to formal engineering reports.
Tell us who will read the output and what they need to take from it, and we will structure our deliverable accordingly.

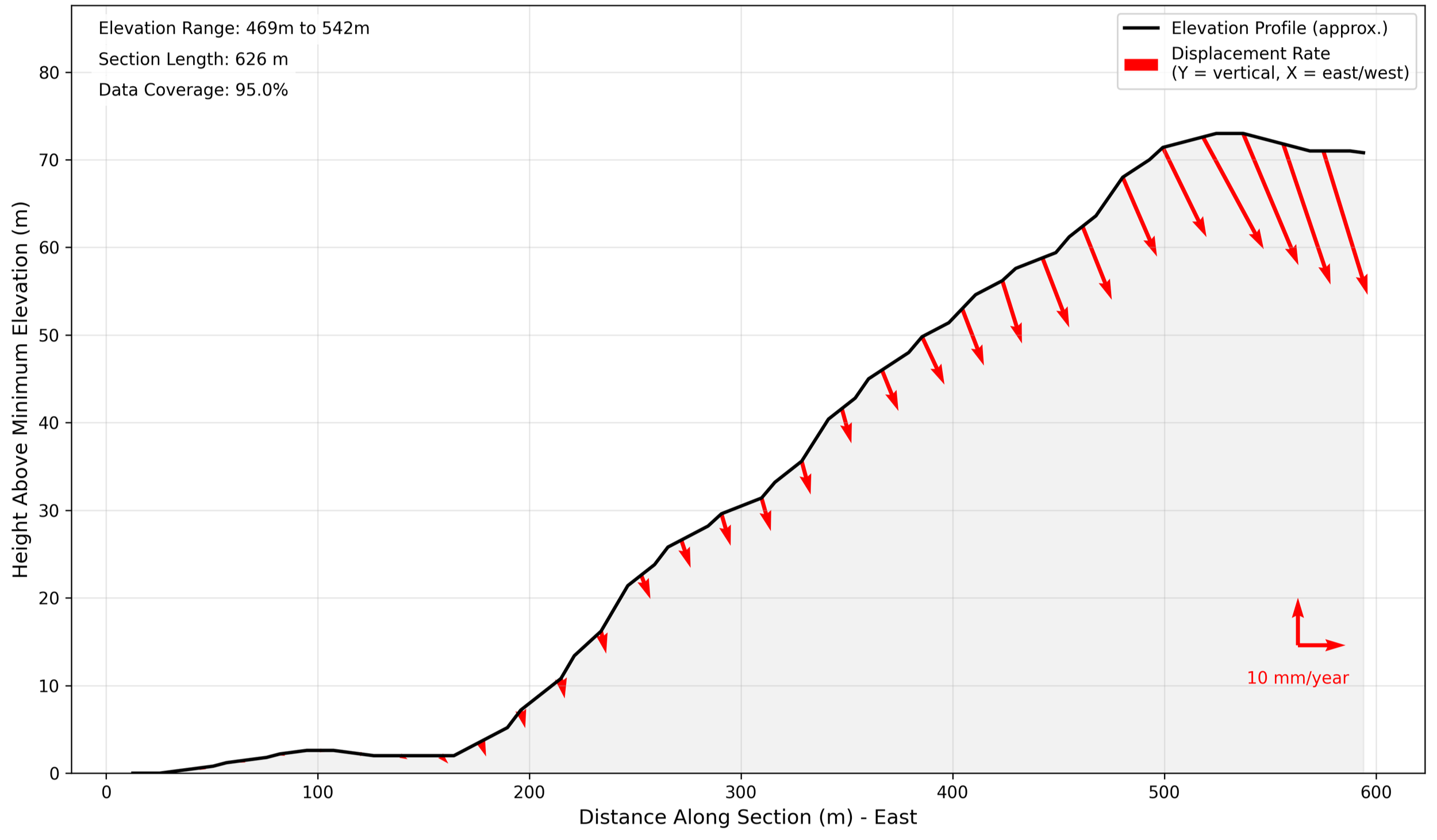

Velocity cross-sections can incorporate slope profiles at your site, to visually illustrate the rate and direction of slope displacement.
Quality and independence
Our reporting is independent and objective.
We present findings as the data shows them, whether or not they align with expectations.
Our analysis methods are documented and reproducible.
Where uncertainty exists - and it always does - we characterise it honestly rather than overstating confidence.
This commitment to technical integrity is fundamental to providing reports that you can rely on for consequential decisions.
